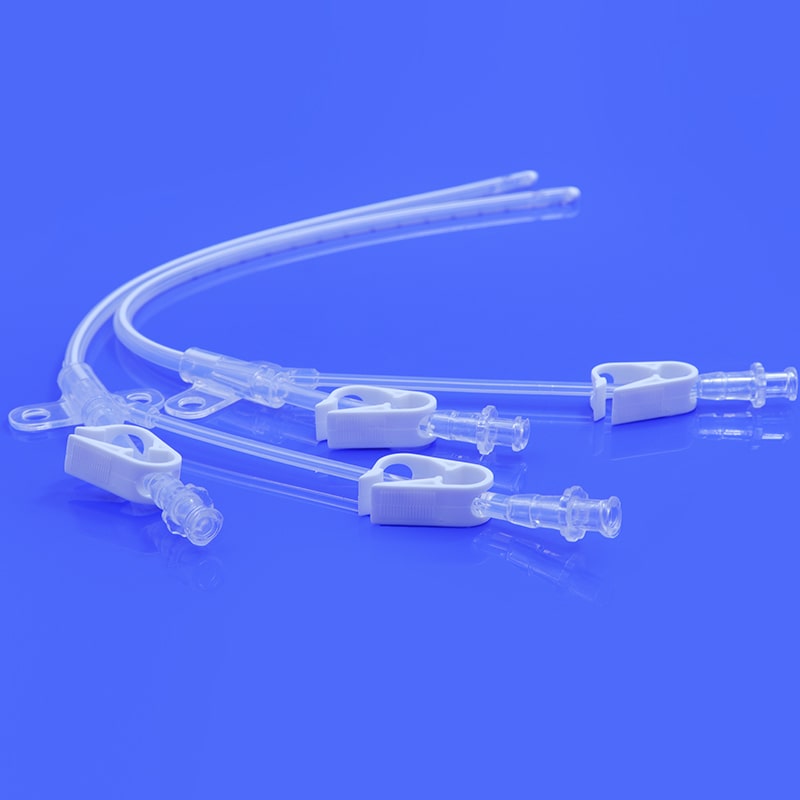

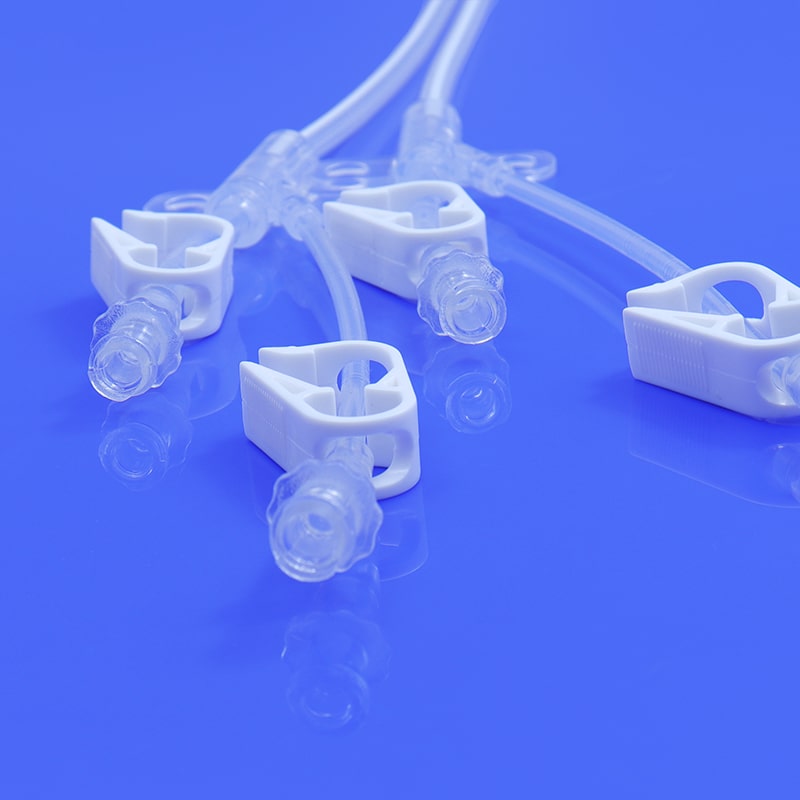

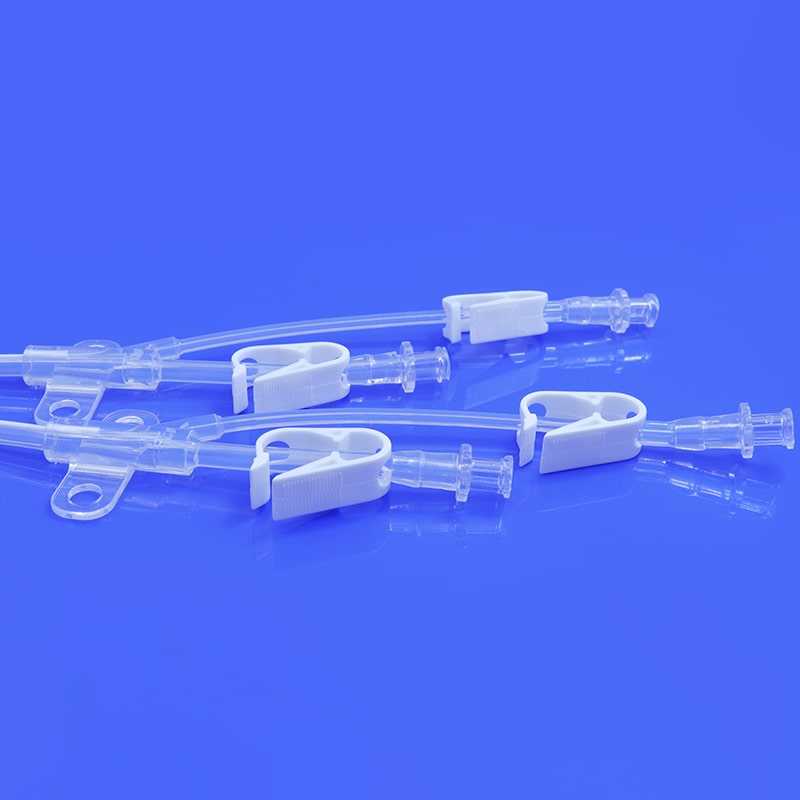

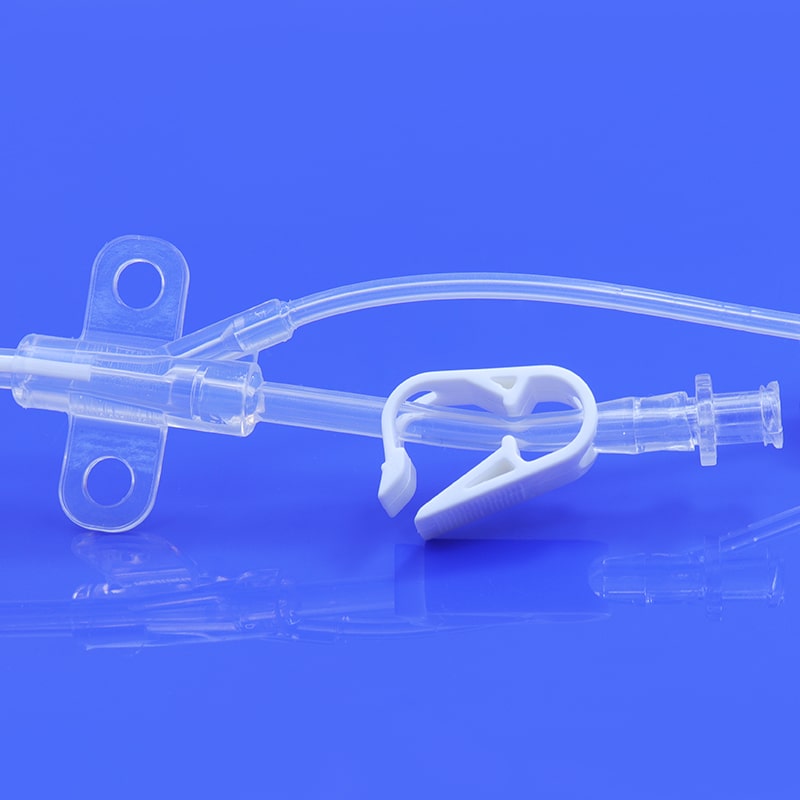

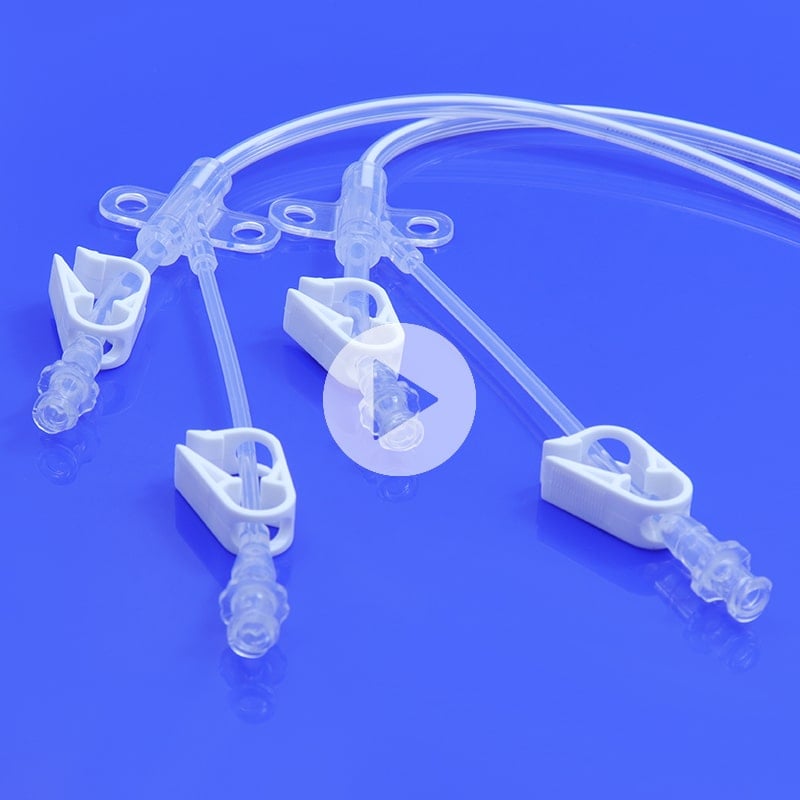

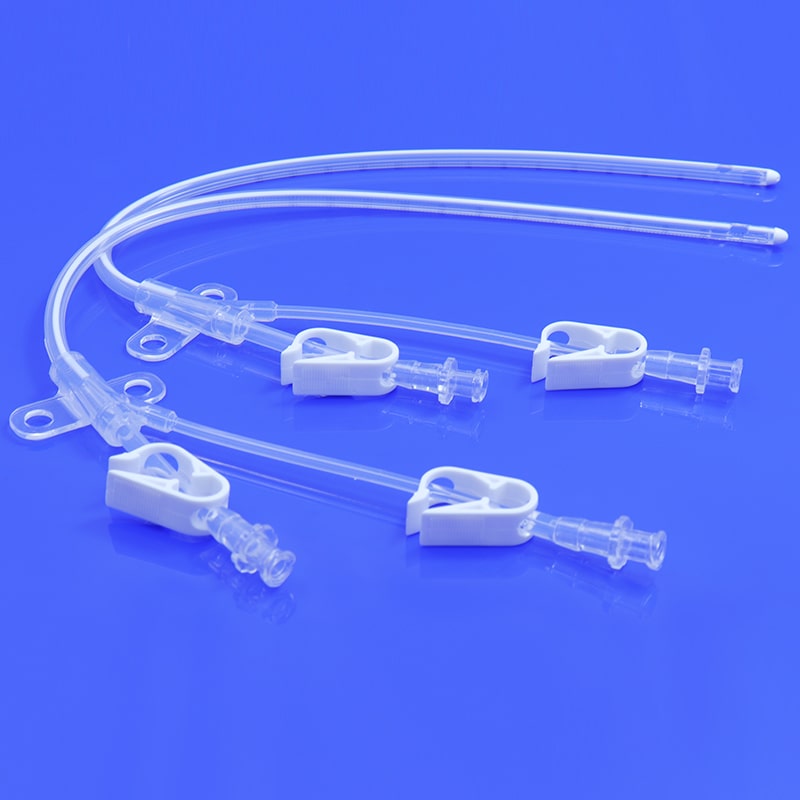

Silicone Ventricular Drainage Tube / External Ventricular Drains
- Category: Wound Drainage SystemsModel Number:JE-019
Benifits And Advantages:
The silicone ventricular drainage tube is placed in the frontal angle of the ventricle, and the cerebrospinal fluid or blood flows out through the drainage tube to relieve intracranialEmergency surgery with increased pressure.
- Made of 100% Medical grade silicone, soft texture, little damage to brain tissue.
- Good tissue compatibility, can be placed for a long time.
- The drainage tube has a scale, which can observe and control the insertion depth.
- The drainage tube size: Fr8, Fr10, Fr12.
An external ventricular drainage tube is often used for ventricle puncture, it is a soft silicone catheter that is inserted via a burr hole into the anterior horn of the lateral ventricle and connected to a closed sterile system to allow for temporary drainage of cerebrospinal fluid and/or monitoring of intracranial pressure.
Indications for external ventricular drainage tube
- To relieve raised intracranial pressure
- To divert infected CSF
- To divert bloodstained CSF following neurosurgery/haemorrhage
- To divert the flow of CSF
- To monitor intracranial pressure
Performances of Ventricular Drainage Tube
1. Medical grade silicone material, soft texture, little damage to brain tissue.
2. Good tissue compatibility, can be placed for a long time.
3. The drainage tube has a scale, which can observe and control the insertion depth and can be visualized by X-ray
4. The drainage bag is equipped with a one-way valve to prevent backflow and infection
5. The drainage system is equipped with a detection tube, which can accurately measure the amount of cerebrospinal fluid and obtain the intracranial pressure.
6. The drainage system is equipped with a three-way valve, which can take cerebrospinal fluid, drug administration or external pressure sensor at any time
7. The drainage system has the function of monitoring and adjusting ventricular pressure
8. Cerebral ventricle drain tube product specifications: Fr8, Fr10, Fr12
Use of Ventricular Drainage Tube
It can be used for continuous drainage of intracranial effusion or hematoma during surgery or treatment, thereby effectively improving brain tumors, brain edema, traumatic brain injury, and intracerebral hemorrhage.Neurosurgical symptoms such as CFS circulatory disorder, increased cerebral pressure, and extension of ventricular veins can help the circulation of cerebrospinal fluid and prevent the increase of cerebral pressure.
Specifications of Ventricular Drainage Tube
Product Name: Ventricular Drainage Tube
Brand Name: OEM
Disinfecting Type: EOS
Properties: Medical Materials & Accessories, Medical Polymer Materials & Products
Stock: Yes
Shelf Life: 3 years
Material: Medical grade silicone,PVC
Quality Certification: CE/FDA.ISO13485
Instrument classification: Class II
Sample: free for sample
Sterilization: EO
Product Certificates of Ventricular Drainage Tube
- ISO 13485
- FDA
- LFGB
- Biocompatibility (Skin irritation test, skin sensitization test, pyrogenicity test, haemolysis test and MTT cytotoxicity test)
